7x17x5 Front Ceramic Rubber

7x17x5 Front Ceramic Rubber

Product Information

SKU: 697-RSCF
Price: $10.00
Quantity: 1 in stock

Product Overview

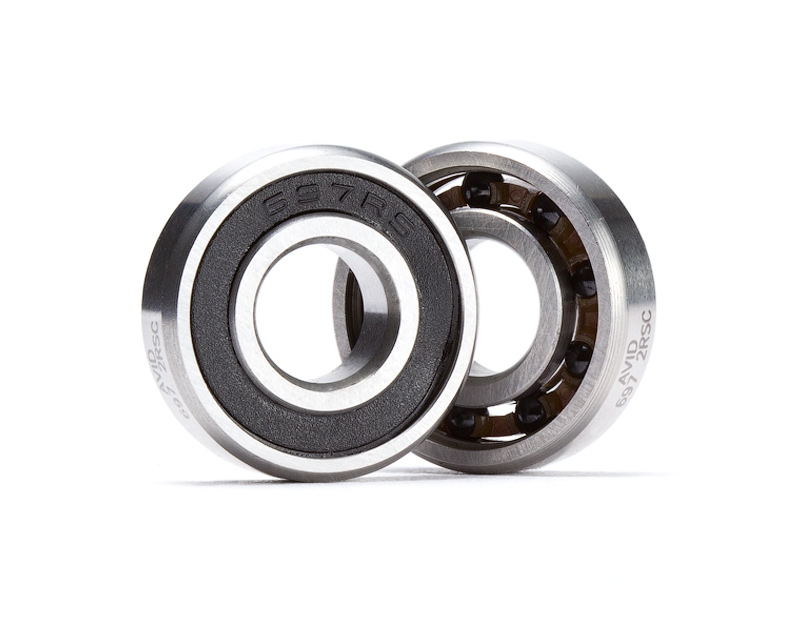

The Avid 7x17x5 Ceramic Engine Bearing offers the maximum performance and reliability to your Traxxas racing engine at an unbeatable price. The bearing specs are Abec5, 8 G3 Si3N4 Ceramic Balls, PA66 with 30 Glass Fiber Cage, and Chrome Steel 52100 Rings.

If your engine is not listed below, please check with your manufacturer first to see what size you require.

Engines Used In

  • Traxxas: 2.5, 2.5R, 3.3
  • Picco: .26 MAX, .26 Max JL Red Dot
  • RB: TM323

Tips

  • Diagnosing: Typically you can tell a front bearing is going out if after a run there is a large wet spot on the bottom of your motor next to the flywheel. A little bit of wet is ok and usually just a sign of a rich low-end needle. If the bearing is bad your risks/issues will be inconsistent tune and possible chance of damaging the crank/case if it completely goes.
  • Installation: The best way to install is to use a bearing puller/installer, OFNA makes a very affordable one. If you place the new bearing in the freezer for 15 minutes it will be easier to install.
  • Positioning: This is a single rubber sealed bearing to allow for proper lubrication. Place the rubber seal towards the outside (facing clutch).
  • Break-In: For the first run of these bearings, Avid suggests that you fatten your motor up on the high-end needle so the ceramic balls will seat instead of skidding them.

Bearing Dimensions

Product Family

7x17x5 Front Rubber
SKU: 697-2RSF | Price: $5.00
7x17x5 Rubber
SKU: 697-2RS | Price: $1.00
7x17x5 Front Ceramic Rubber
SKU: 697-RSCF | Price: $10.00
