Machined Piston 12mm (2 x 1.4mm) | AE, Losi, Kyo, Yok

Machined Piston 12mm (2 x 1.4mm) | AE, Losi, Kyo, Yok

Product Information

SKU: AV1030-2x1.4-F
Price: $16.00

Quantity: 15 in stock

Product Overview

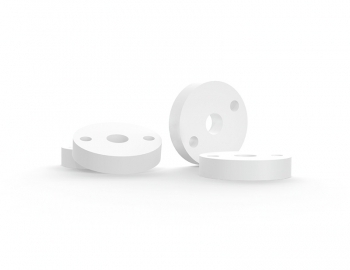

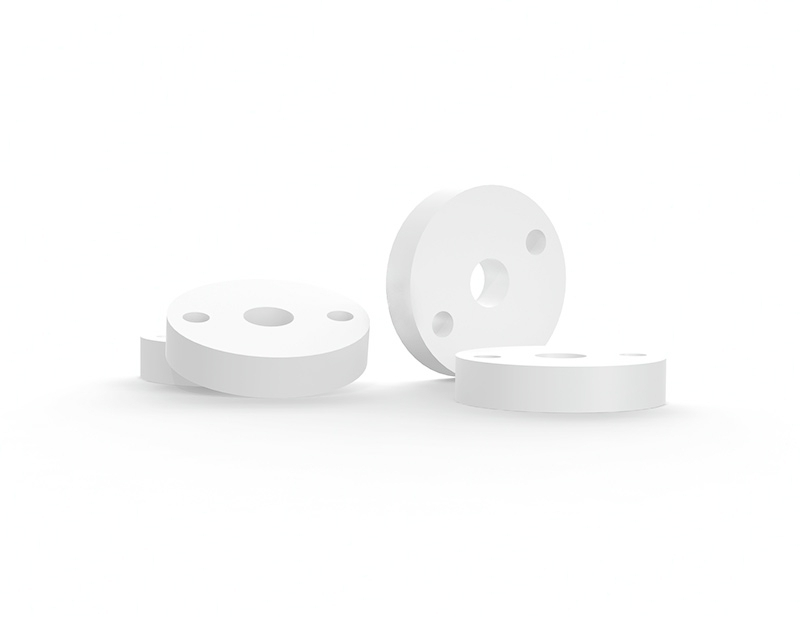

The AV1030 machined 12mm piston with 2 x 1.4mm holes offers a conventional setup but with a tight-fitting piston that has little blow-by. It is recommended to use the 2 x 1.4 in bumpy conditions where you typically like the 2 x 1.3. AVID offers other popular 2 hole 1.3mm, 1.5mm, 1.6mm and 1.7mm as well as 4 hole 1.3mm (#55) flat pistons.

Piston Tips

  • Use the 2 x 1.3 piston in the Losi SCTE with 32.5 front and 30 rear.
  • Use the 2 x 1.4 piston in bumpy conditions where you normally run a 2 x 1.3 piston.
  • Use the 2 x 1.5 piston in truck or SC in the front with 30 - 35wt.
  • Use the 2 x 1.6 piston in truck or buggy with 30 - 32.5wt in front and 27.5 - 30wt in the rear
  • Use the 2 x 1.7 piston in buggy with 35wt in front and 32.5wt in rear.
  • Use 1.5+1.1 piston in replacement of the 2 x 1.6. In buggy, typically start with 30 wt oil front and 27.5 or 30wt rear.
  • Use 1.6+1.1 piston in replacement of the 2 x 1.7. In buggy or truck, typically start with 30 or 32.5 wt oil in rear shocks.
  • For a 4wd buggy, we recommend 1.5+1.1 front with 35 wt and 1.6+1.1 rear with 30 wt or 2 x 1.7 in the rear with 30wt.

Piston Features

  • Fits 12mm shocks for Team Associated, TLR 22/SCTE, and Kyosho (12mm bore, 3mm hole, 2.5mm thick).
  • Machined round with a tighter fit to bore of the shock body for less blow-by.
  • Each package includes 4 pistons inside of a Doodad container printed with AVID logo.
