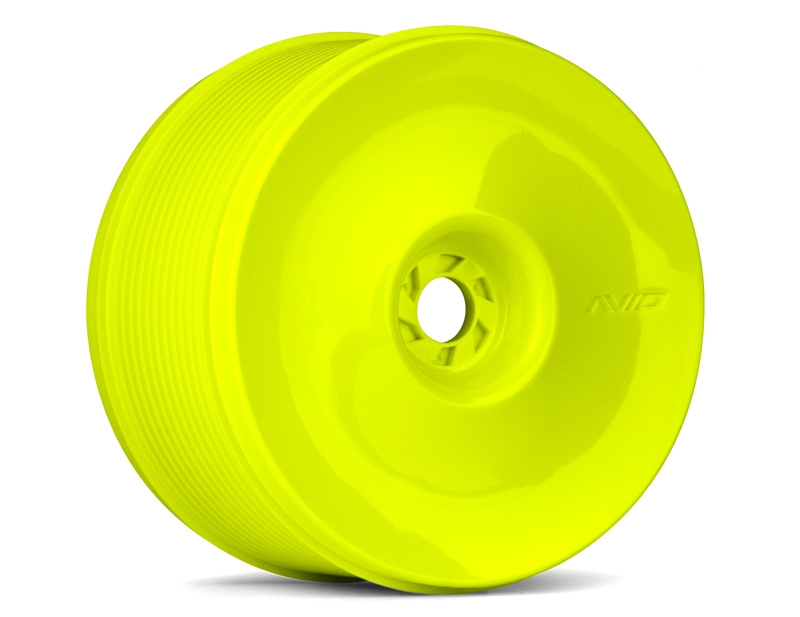

Truss 8th Truck Wheel 4.0" | Yellow | 2 pairs

Truss 8th Truck Wheel 4.0" | Yellow | 2 pairs

Product Information

SKU: AV1109-Y
Price: $20.00
Quantity: 100+ in stock

Product Overview

The Avid Truss 8th Truck Wheel is another innovation by Avid RC. The wheel is extremely important to the overall handling of your vehicle and is often overlooked. We took all the unique high-performance features from our iconic 1/8th scale buggy wheel and placed them directly into this design. Along with going back to the drawing board on reformulating the material to best withstand the brutally cold weather that racers are now willing to race in.


  • Outer channels, nick-named the "foam grippers", remove a little rotating mass at the furthest point but more importantly they help the foam from shifting side to side. The benefit on track is that the car has more stability, especially when you are off power trying to swerve left and right to avoid a wreck or through a set of switchbacks after a high-speed section.
  • Rounded outer glue bead that extends slightly past the tire when mounted to help guide the glue easily into place and to also help protect the bead from having direct contract with ruts which can quickly start tearing the tire off of the rim.

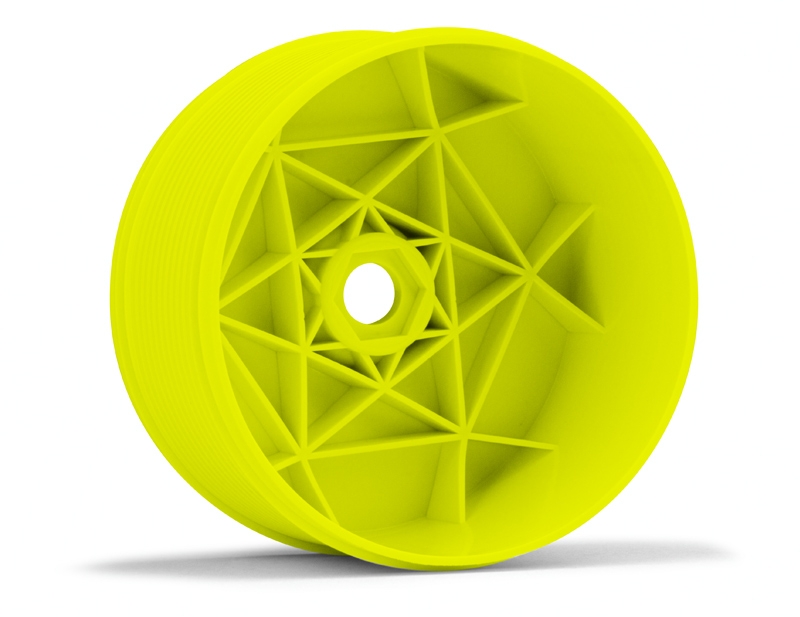

  • Looking inside the wheel you will see where it gets the name "Truss". The internal ribbing uses the strength of triangles instead of having straight ribs. Instead of us explaining the benefits of trusses and why they are considered the strongest structural design, just Google it, we didn't invent it. The focus of the Truss starts at the center of the wheel so the tighter triangles help keep the torque strength right where you want it when applying all your throttle, at the nut.
  • The glue bead support ribs, or what we like to call the headboards, are quite small so it doesn't interfere with the foam and tire doing their work while landing off of large jumps or rough conditions. It feels like you are landing on pillows and allows the foam not to be torn apart from getting sliced from a taller rib.
  • The face has a slight concave instead of the common flat dish. The benefit of this design is mostly for aesthetics, other than slightly more wheel nut protection, it makes for a very shiny wheel because the curve encourages reflections and it helps break up the monotony of the common designs on the market.
  • They have the common features such as the rough glue bead area for better gluing, wheel nut area cutouts to help serrated wheel nuts grab more edges, and the logo inset on the face of the wheel to represent.
  • Large 4.0" outer diameter.
  • Lightweight at 65.4g each.


  • (4) Truss 8th Truck 4.0" Wheels | Fluorescent Yellow
  • Avid Mini Decal Sheet
